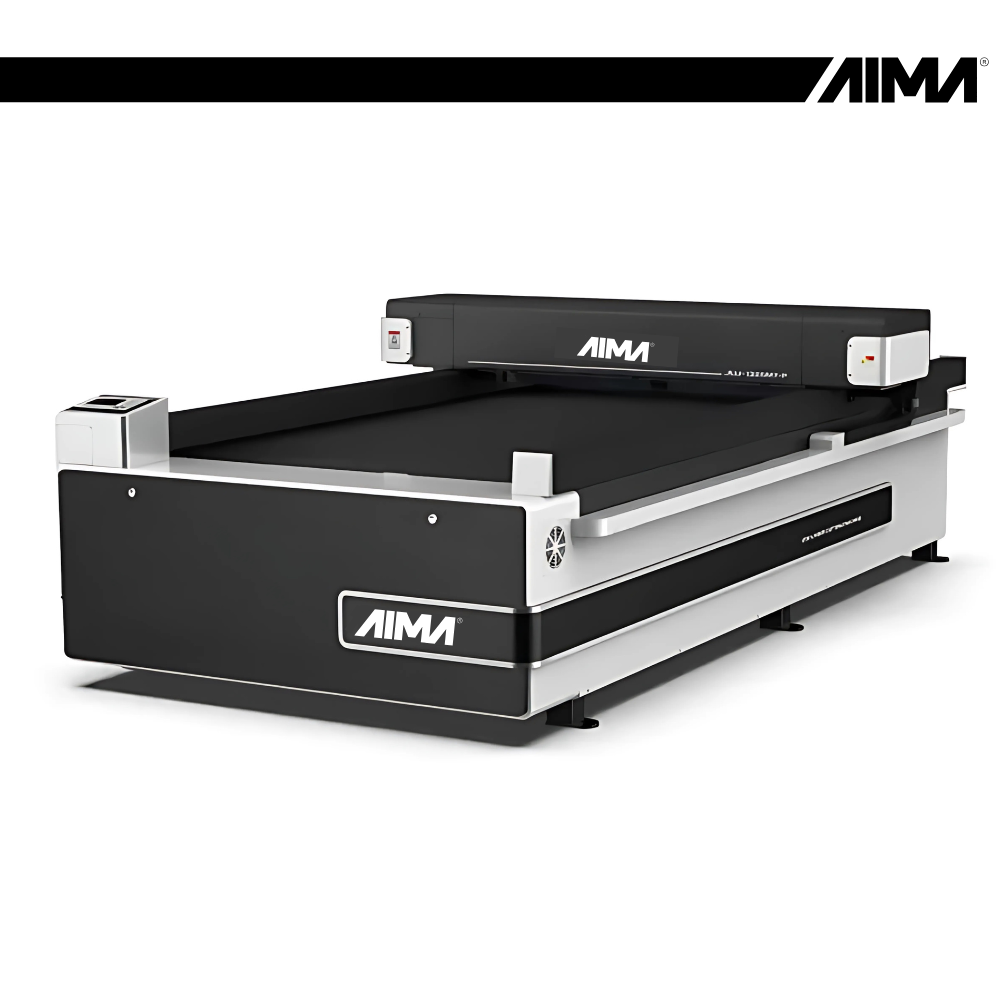

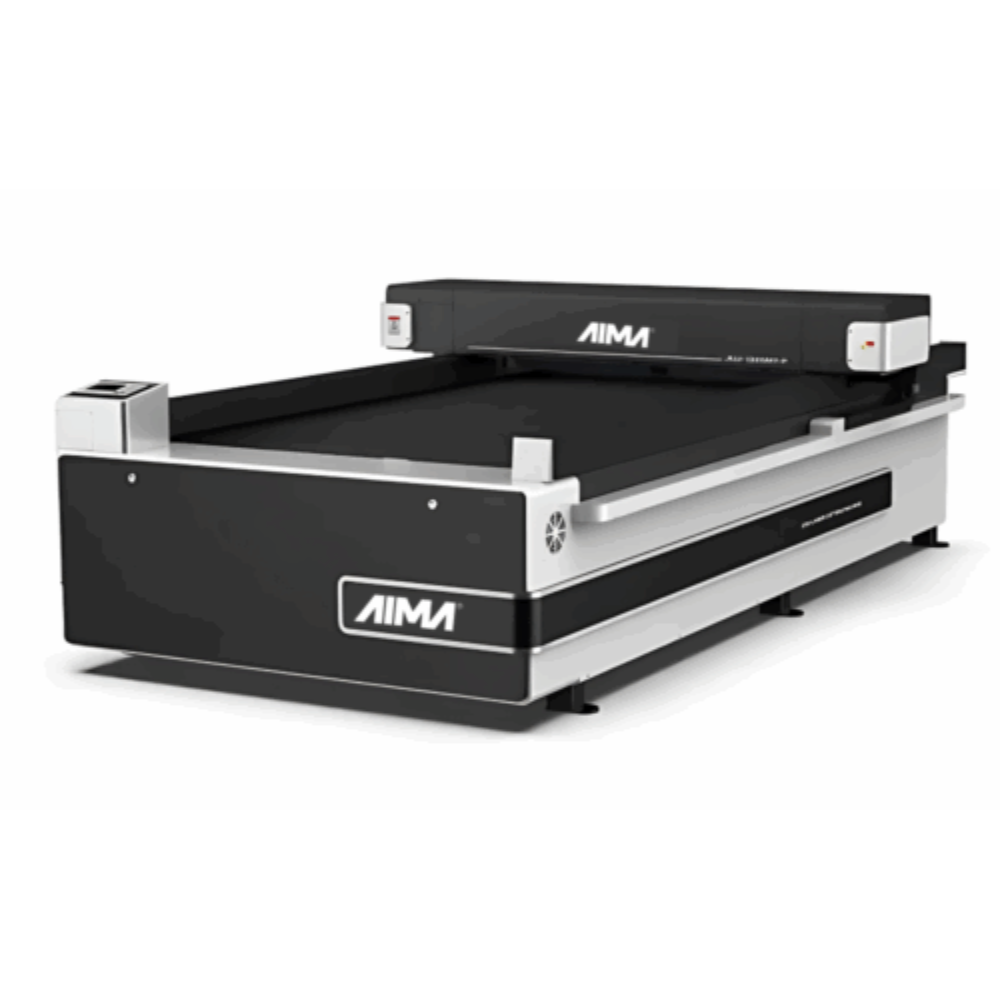

Product details
| Working Area | 1300*2500 mm |
| Working Voltage | AC 220V±10%，50HZ |
| Control System | Ruida controller |
| Driver | Leadshine stepper |
| Machine table | Blade table、Honeycomb table（Optional） |
| Laser type | Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm |
| Energy regulation | Pure circulating water cooling |
| energy regulation | 0-100% stepless control, 0-100% adjustable within the software |
| Minimum Formed Words | ≤±0.05mm |
| Engraving speed | 0 -1200mm/s |
| Cutting speed | 0 – 600mm/s |
| Minimum Formed Words | English word 1mm |
| Working environment | Temperature: 0-45C, Humidity 5-95%(No Condensate Water) |
| Total power | ＜5KW |
| Graphic format supported | BMP, JGP, PNG, DXF, etc. |
