Product details
| Feature | Specification |

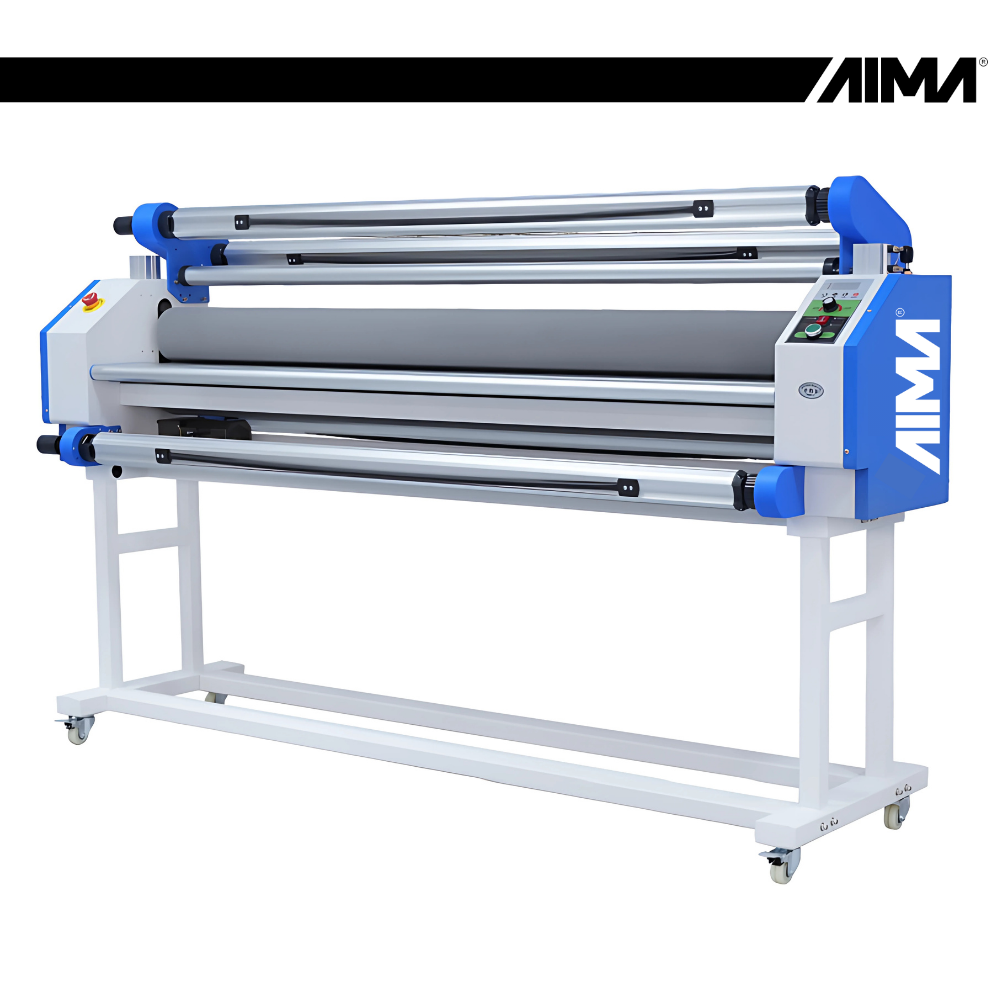

| Model Number | DMS-1680A |
| Nominal Voltage | 110V / 220V |
| Power | 90W |
| Heating Power | 1500W |
| Frequency Response | 50HZ-60HZ |
| Operating Temperature | 0℃-60℃ |
| Scope of Suitable Film Thickness | 10-250 µm |
| Warm-up Time | 0-10 Min |
| Actual material width | ≤ 1520mm |
| Laminating speed | 0-10m/Min |
| Laminating Thickness | 28mm |
| Speed Gear Controlling | Variable |
| Maximum roll film OD | 200mm |
| The diameter specification of Roll film | 3 inches |
| The raise height of roller | 30mm |
| Method of pressure adjustment | Pneumatic |
| Automatically uncovering film and rolling body paper equipment | Motor |
| Foot-propelled switch | Yes |
| Diameter of roller | 130mm |
| Weight | 210kg |
| Product Size (Length × Width × Height) | 1930x570x1240(mm) |
| Packing Size (Length × Width × Height) | 1980x630x680(mm) |
