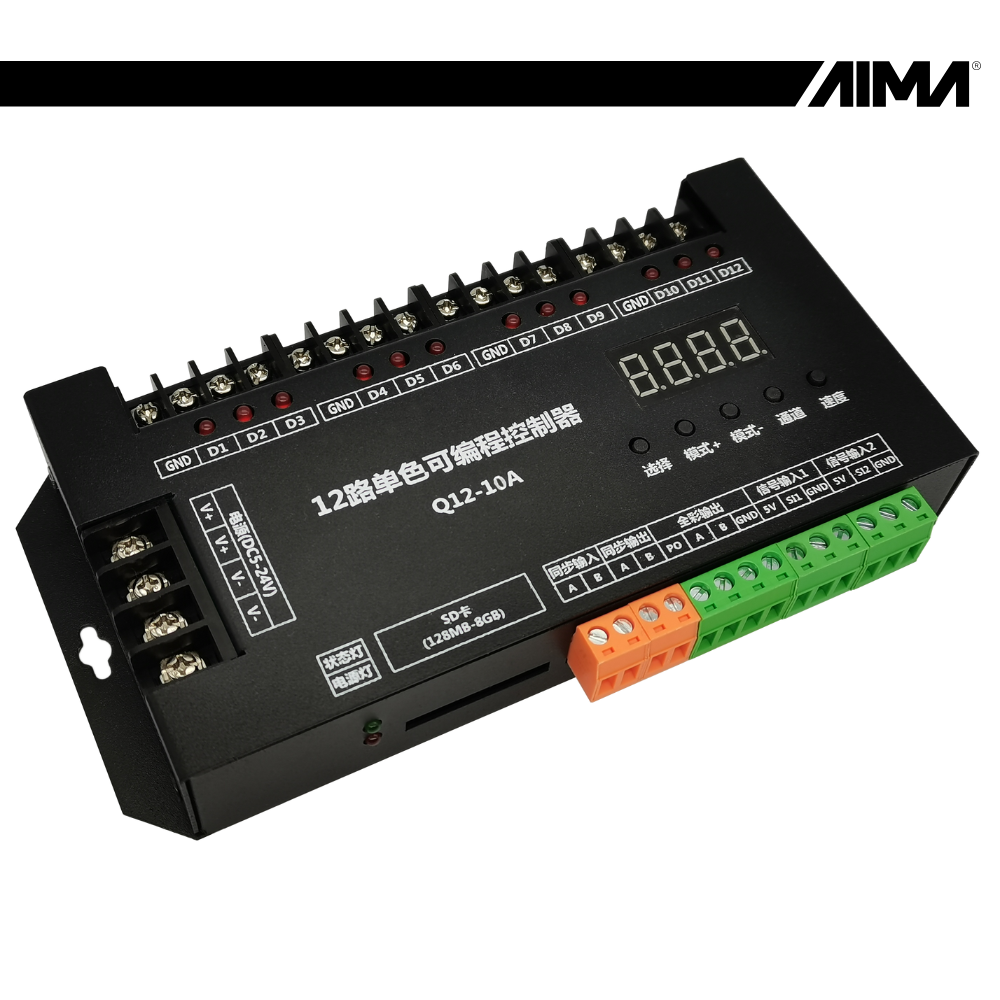

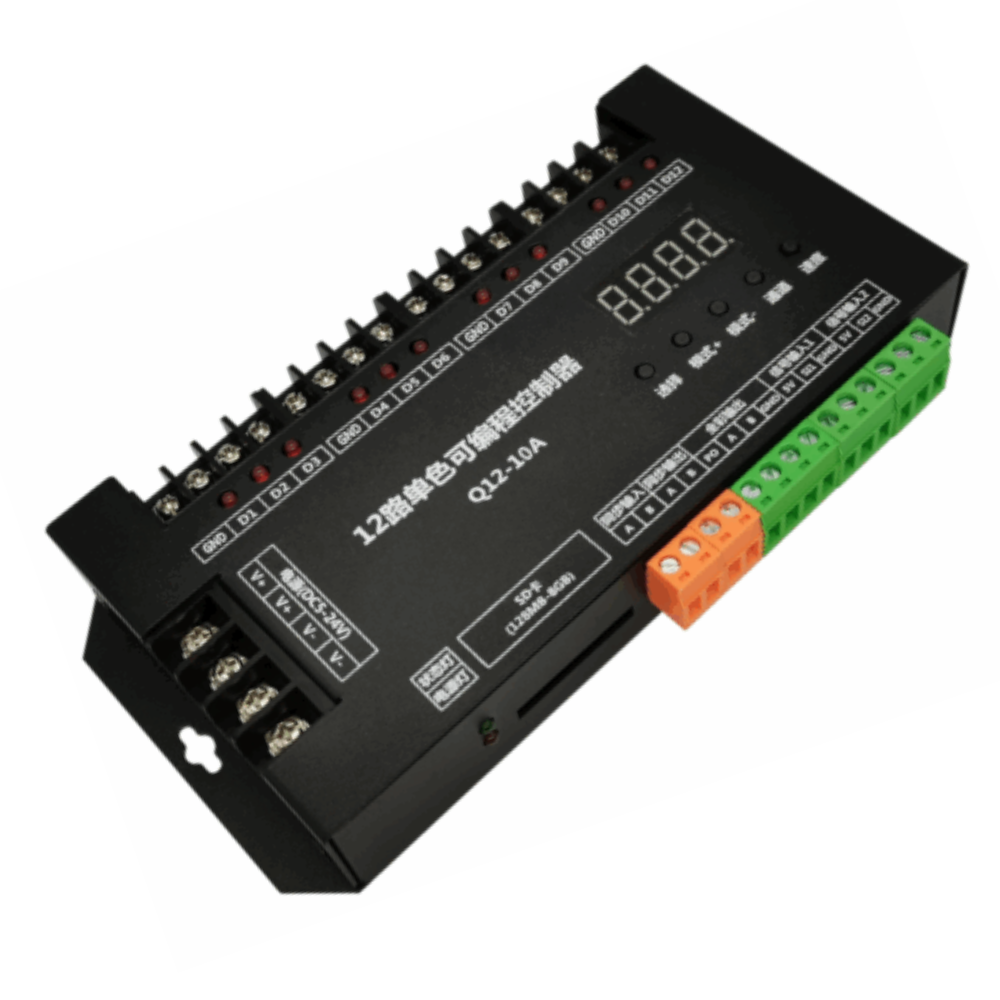

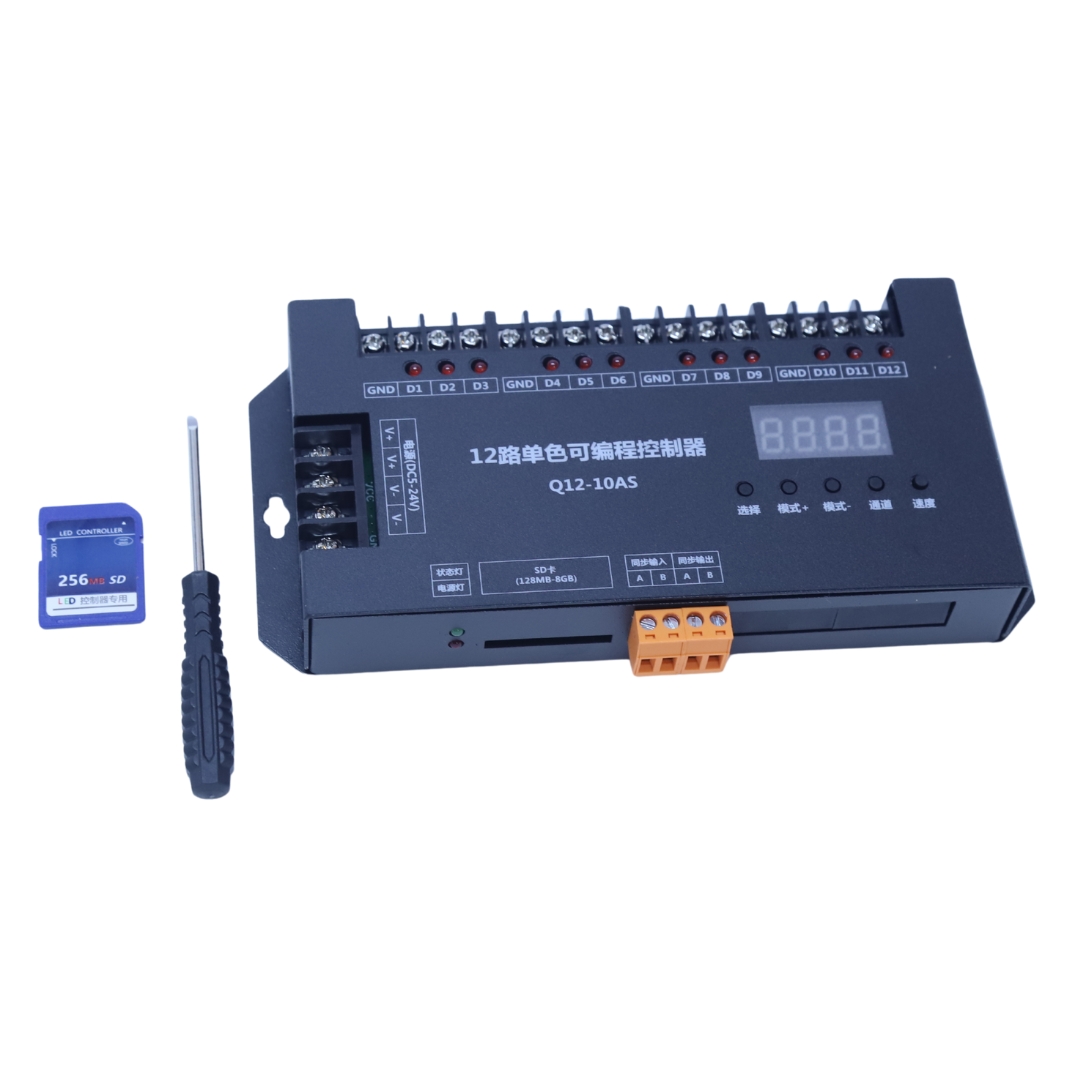

Product details
Controller parameters
| # | Description of symbols | Terminal | Terminal wiring instructions |
| 1 | DC5-24V power port | V+ | Positive power supply |
| V+ | Positive power supply | ||
| V- | Negative pole of power supply | ||
| V- | Negative pole of power supply | ||
| 2 | LED Indicator | red light | Power indicator |
| red light | Running indicator light | ||
| 3 | SD card slot | ||
| 4 | Sync input port | A | Connect to the A terminal of the synchronous output of a controller |
| B | Connect to the synchronous output B terminal of a controller | ||
| 5 | Synchronous output port | A | Connect to the next controller synchronous input A terminal |
| B | Connect to the next controller synchronous input B terminal | ||
| 6 | Full color lamp output port | PO | Connect to DMX512 lamp PI signal, or TTL lamp CLK signal |
| A | Connect to DMX512 lamp A signal, or TTL lamp DAT signal | ||
| B | Connect DMX512 lamp B signal | ||
| GND | Connect to the negative pole of full-color lamp | ||
| 7 | External control signal input port 1 | S1 | Connect to switch 1 |
| GND | Connect to the other end of switch 1 (grounded inside the controller) | ||
| 8 | External control signal input port 2 | S2 | Connect to switch 2 |
| GND | Connect the other end of switch 2 (internal ground of the controller) | ||
| 9 | External control signal input port 3 | S3 | Connect to switch 3 |
| GND | Connect the other end of switch 3 (internal ground of the controller) | ||
| 10 | Button x5 | choose | Play button |
| Mode+ | Switch to next effect | ||
| model- | Toggle previous effect | ||
| aisle | Set the number of extensions | ||
| speed | Set playback speed | ||
| 11 | 0.36 inch LED digital tube | ||
| 12 | 12 output indicator lights | ||
| 13 | 12-way single-color lamp terminal block | GND | Connect to the negative pole of the common power supply of lamps 1-3 |
| D1 | Connect to the negative pole of the first lamp | ||
| D2 | Connect to the negative pole of the second lamp | ||
| D3 | Connect to the negative pole of the third lamp | ||
| GND | Connect to the negative pole of the common power supply of the 4th to 6th lamps | ||
| D4 | Connect to the negative pole of the 4th lamp | ||
| D5 | Connect to the negative pole of the 5th lamp | ||
| D6 | Connect to the negative pole of the 6th lamp | ||
| GND | Connect to the negative pole of the common power supply of lamps 7-9 | ||
| D7 | Connect to the negative pole of the 7th lamp | ||
| D8 | Connect to the negative pole of the 8th lamp | ||
| D9 | Connect to the negative pole of the 9th lamp | ||
| GND | Connect to the negative pole of the common power supply of lamps 10-12 | ||
| D10 | Connect to the negative pole of the 10th lamp | ||
| D11 | Connect to the negative pole of the 11th lamp | ||
| D12 | Connect to the negative pole of the 12th lamp |
