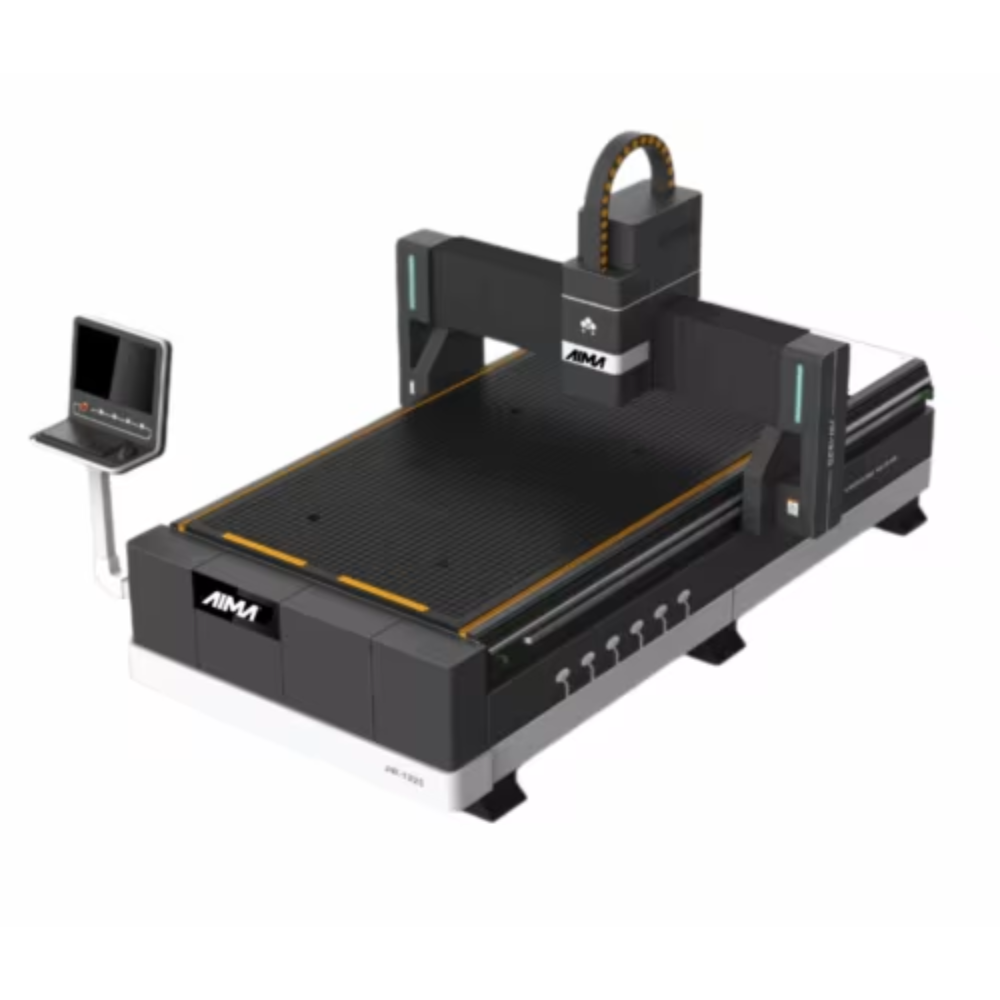

Product details
| Working Area: | 1300*2500*200mm |
| Spindle Power: | Air or Water Cooling Spindle |
| X,Y,Z Traveling Positioning Accuracy: | ±0.03/2000mm |
| X,Y,Z Rail Transmission: | X Y axis gear Transmission, Z axis Taiwan TBI Ball Screw |
| Max. Rapid Travel Rate: | 50m/min |
| Max. Working Speed: | 30m/min |
| Spindle Speed: | 6000-24000RPM |
| Drive Motors: | 4 Sets Stepper Motor And Drivers |
| Working Voltage: | AC220v0r380v / 50Hz / 3 Phase, 220v / 1 Phase / 50Hz |
| Command Language: | G Code |
| Operating System: | NC Control System |
| Interface: | USB |
| Software Compatibility: | Option: VCarve / VCarve Pro / UCanCAM / ArtCAM, etc. |
| Running Environment: | Temperature: -20°C~45°C,
Relative Humidity: 5%~75% |
