Product details
| Category | Feature | Value | |

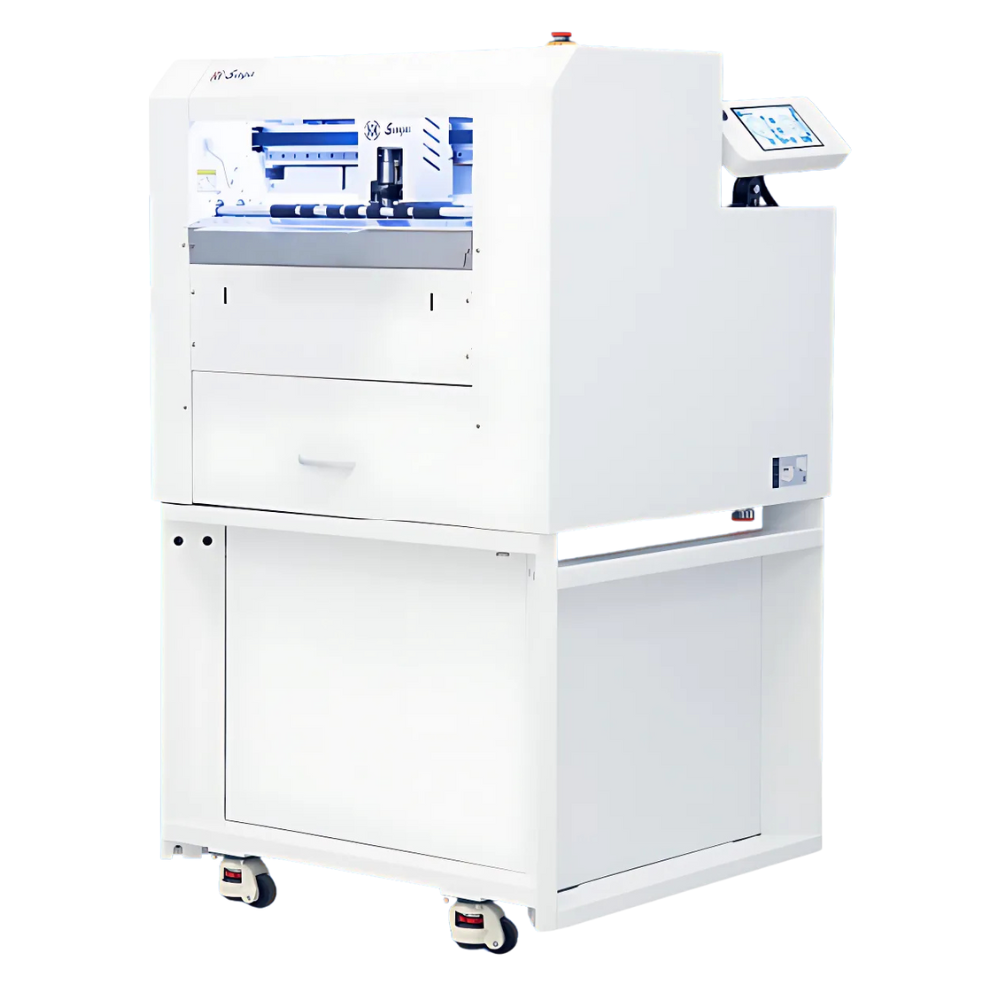

| Model name | Model name | SG-ASC2312 | |
| — | Working motor | X-DC servo motor Y-DC servo motor | |
| — | Positioning sensor type | Digital cameras (CCD) | |
| — | Control panel | 7 inch capacitive touch screen | |
| — | Number of tool holders | Double tool holders | |
| — | Blade types | Blade/pen/wheel indentation | |
| Machine performance | Media hold method | Vacuum adsorption | |
| — | Scanning code type | Mark or QR code | |
| — | Maximum cutting size | A3+ (330mm×740mm) | |
| — | Maximum loading depth | About 120mm | |
| — | Scanning speed | About 5s | |
| — | Cutting speed | 15-1050 | |
| — | Cutting force | Creasing: 0-2500gf<br>Blade: 0-900gf | |
| — | Maximum weight of paper | 80g-400g (varies for different cutting materials) | |
| — | Minimum cut character size | about 10 mm² (varies depending on font graphics and cutting material) | |
| — | Internal storage space | Memory size: 128M<br>Function: For storing cutting files use | |
| — | Mechanical resolution | 0.02mm | |
| — | Programmable resolution | HPGL 0.025mm | |
| — | Repeat precision |
|
|
| — | Cutting Media Types | Self-adhesive paper, cardstock | |
| Software and compatibility | Connectivity | port, network port | |
| — | Source | WiFi and USB flash drive | |
| — | Software and compatibility | Professional Digital Cut software CutStudio<br>CorelDRAW / Illustrator Plug-in | |
| Power and working environment requirements | Working power | Maximum 320W | |
| — | Voltage and current | 100VAC-277VAC,50/60Hz, Maximum current 4.2A | |
| — | Operation environment | Temperature: + 5°C to +35°C (41°F-95°F)<br>Humidity: 30%-75%RH (Non-condensing) | |
| Dimensions and Weight | Actual dimensions | L740-780mm×W780mm×H1340mm | |
| — | Package dimensions |
|
|
| — | NW/GW | 146±5kg/188±5kg |
