Product details
| Category | Item | Specification | |

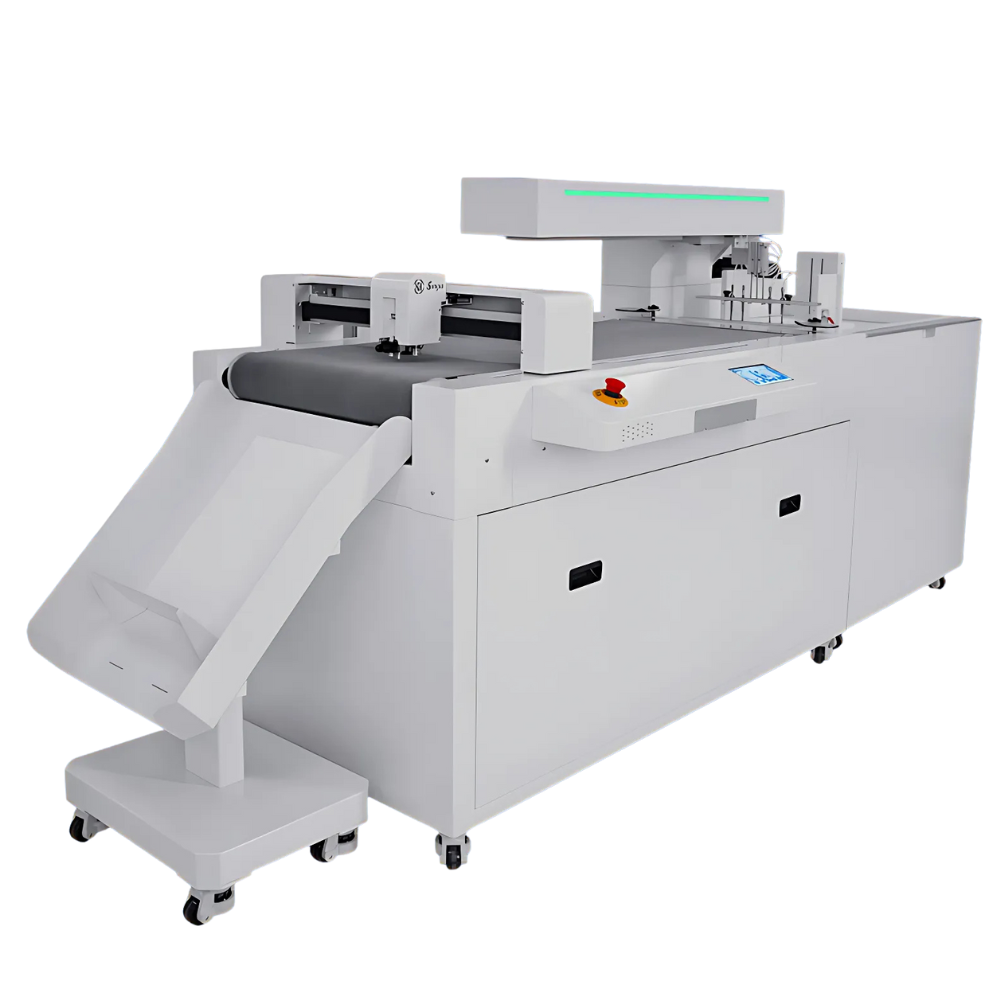

| Model name | — | SG-ASF420 | |
| Cutting control system | X- | High-power brushless servo motor | |
| — | Y- | High-power brushless servo motor | |
| Positioning sensor type | — | Digital camera (CCD) | |
| Control panel | — | 7 inch capacitive touch screen | |
| Number of tool holders | — | Double tool holders | |
| Blade types | — | Blade, creasing tool and pen | |
| Number of tangential blade | — | Double tool holders | |
| Tangential blade types | — | Blade, creasing tool | |
| Machine performance | Operation mode | Front / Rear scanning and Front / Rear cutting / Matrix cutting | |
| — | Media hold method | Vacuum suction | |
| — | Scanning code type | Mark/QR code | |
| — | Maximum width | 490mmX710mm | |
| — | Maximum cutting size | 430mmX672mm | |
| — | Scanning speed | 5-10s | |
| — | Maximum actual cutting speed | 100mm/s-700mm/s | |
| — | — | 10mm/s Step | |
| — | Maximum Cutting Force | Creasing: 0-1900gf (10gf 1Step) | |
| — | — |
|
|
| — | Maximum Paper Weight | 600g (Varies from different cutting materials) | |
| — | Media feeding method | Pneumatic auto feeding system | |
| — | Sheet stack height | 18 cm, up to 600 pcs depends on thickness of the paper | |
| — | Maximum feeding size | A2 (420mmX594mm) | |
| — | Sheet feeding speed | 2-6 pcs/minute | |
| — | Minimum character cutting size | About 10mm² (Varies from contour paterns and medias) | |
| — | Mechanical resolution | 0.02mm | |
| — | Programmable resolution | HPGL 0.025mm | |
| — | Repeat precision |
|
|
| — | Cutting Media Types | Self-adhesive sticker, cardboard, corrugated paper, etc. | |
| Software and compatibility | Connectivity | USB, TCP, WiFi, U disk, Interface | |
| — | Software and compatibility | CutStudio / Corel Draw / Illustrator Plug-in | |
| Power and working environment requirements | Working voltage and current |
|
|
| — | — | 200VAC-240VAC, 50/60Hz, Maximum current 6.8A | |
| — | Working power | Maximum 700W | |
| — | Vacuum Pump voltage and current | 110VAC, 50Hz, Rated current 10.8A, 60Hz, Rated current 13.0A | |
| — | — |
|
|
| — | Vacuum Pump power | 50Hz, 750W; 60Hz, 840W | |
| — | Air Pump Vacuum Power | 750W | |
| — | Operation environment | Temperature +5°C to +35 °C (Fahrenheit 41-95), Humidity 30%-75% (Non-condensing) | |
| Dimensions and Weight | Actual dimensions |
|
|
| — | — | 1595mm×1100mm×1080mm (Flatbed cutter) | |
| — | Package dimensions | 1095mm×1031mm×1417mm (Feeding platform) | |
| — | — | 2168mm×1298mm×1332mm (Flatbed cutter) | |
| — | NW/GW | 128±25kg/191+25kg (Feeding platform) | |
| — | — | 267±25kg/402+25kg (Flatbed cutter) |
