Product details
| Feature Category | Feature | Specification | |

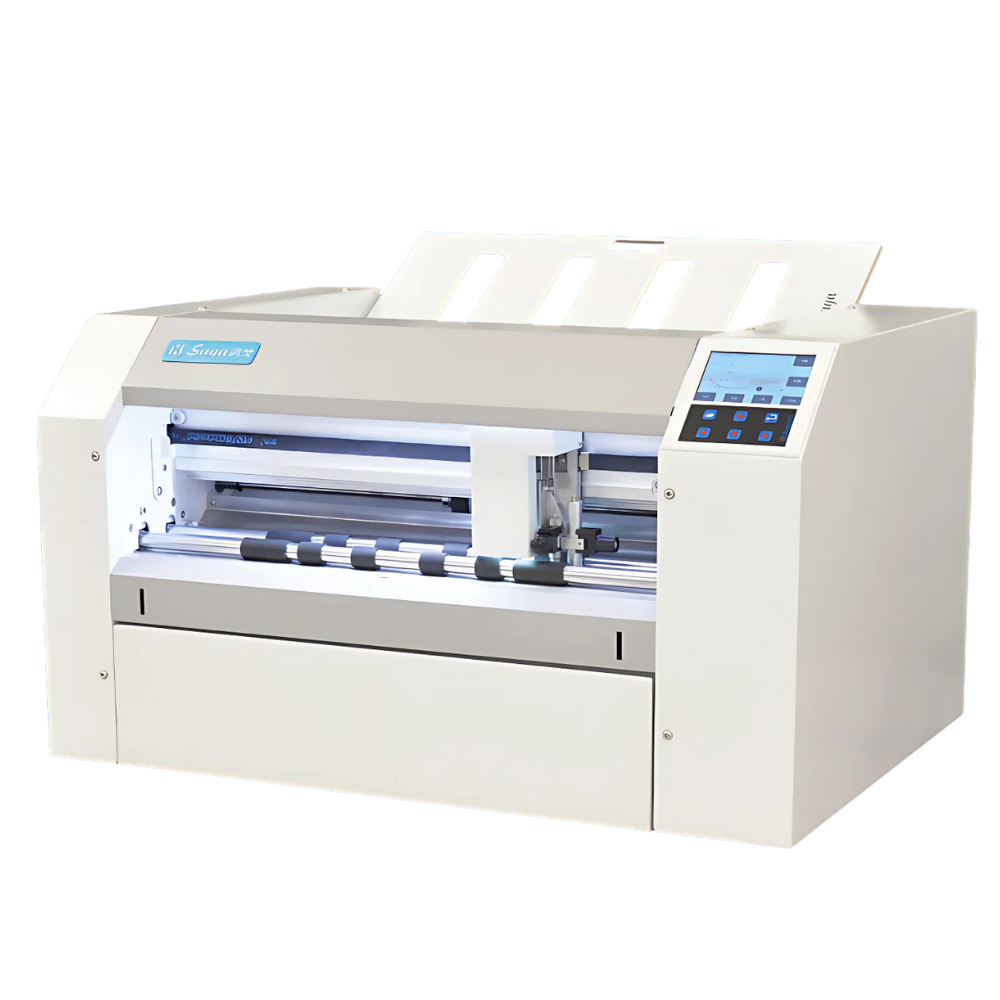

| Model Name | SG-SC 550A01 | ||
| Cutting Control System | X-DC servo motor | Y-DC servo motor | |
| Positioning Sensor Type | Digital camera (CCD) | — | |
| Control Panel | 4.3 inch capacitive touch screen | — | |
| Number of Tool Holders | Double tool holders | — | |
| Blade Types | Blade, creasing tool and pen | — | |
| Cutting Precision (Patterns) | Three patterns (Speed first, Balance first, Precision first) | — | |
| Sheet Feeding Method | Friction feed | — | |
| Sheet Feeding | Up to 20mm (about 100 sheets of self-adhesive material) | — | |
| Scanning Code Type | Round marker, corner marker, QR code | — | |
| Maximum Paper Feed Size | 330mm x 483mm | — | |
| Maximum Cutting Size | 330mm x 483mm | — | |
| Scanning Speed | About 5s | — | |
| Cutting Speed | 10-1200 | — | |
| Cutting Force | 0-900 | — | |
| Maximum Paper Weight | 250g (Depend on variable material) | — | |
| Minimum Cutting Character | About 5mm² (Depend on variable material and graphics) | — | |
| Mechanical Resolution | 0.02mm | — | |
| Programmable Resolution | HPGL 0.025mm |
|
|
| Repeat Precision | ≤0.05mm | — | |
| Cutting Media Types | Self adhesive paper, cardboard, PVC, PET etc | — | |
| Software and Compatibility | Connectivity | USB, WLAN, WiFi, U disk | |
| — | Software and compatibility | Cutstudio, Corel Draw / Illustrator Plugin | |
| Power and Working Environment Requirements | Working power | Maximum 150w | |
| — | Voltage and current | 100VAC-240VAC, 50/60Hz, Maximum current 4A | |
| — | Operation environment | Temperature +5°C to +35°C (Fahrenheit 41-95), Humidity 30%-75% (Non-condensing) | |
| Dimensions and Weight | Actual dimensions | 756 x 545 x 437mm | |
| — | Package dimensions |
|
|
| — | NW/GW | 48±1KG / 67±1KG | |
